An air conditioner is a device for heating and cooling. Their circuit configuration consists of an indoor unit and an outdoor unit.
The indoor unit is equipped with a fan motor that controls the airflow in the room,
and the outdoor unit is equipped with a compressor motor that compresses the refrigerant.
Each motor is controlled by an inverter circuit composed of power devices.
This page provides information on the Fuji Electric semiconductors that are ideal for outdoor units.

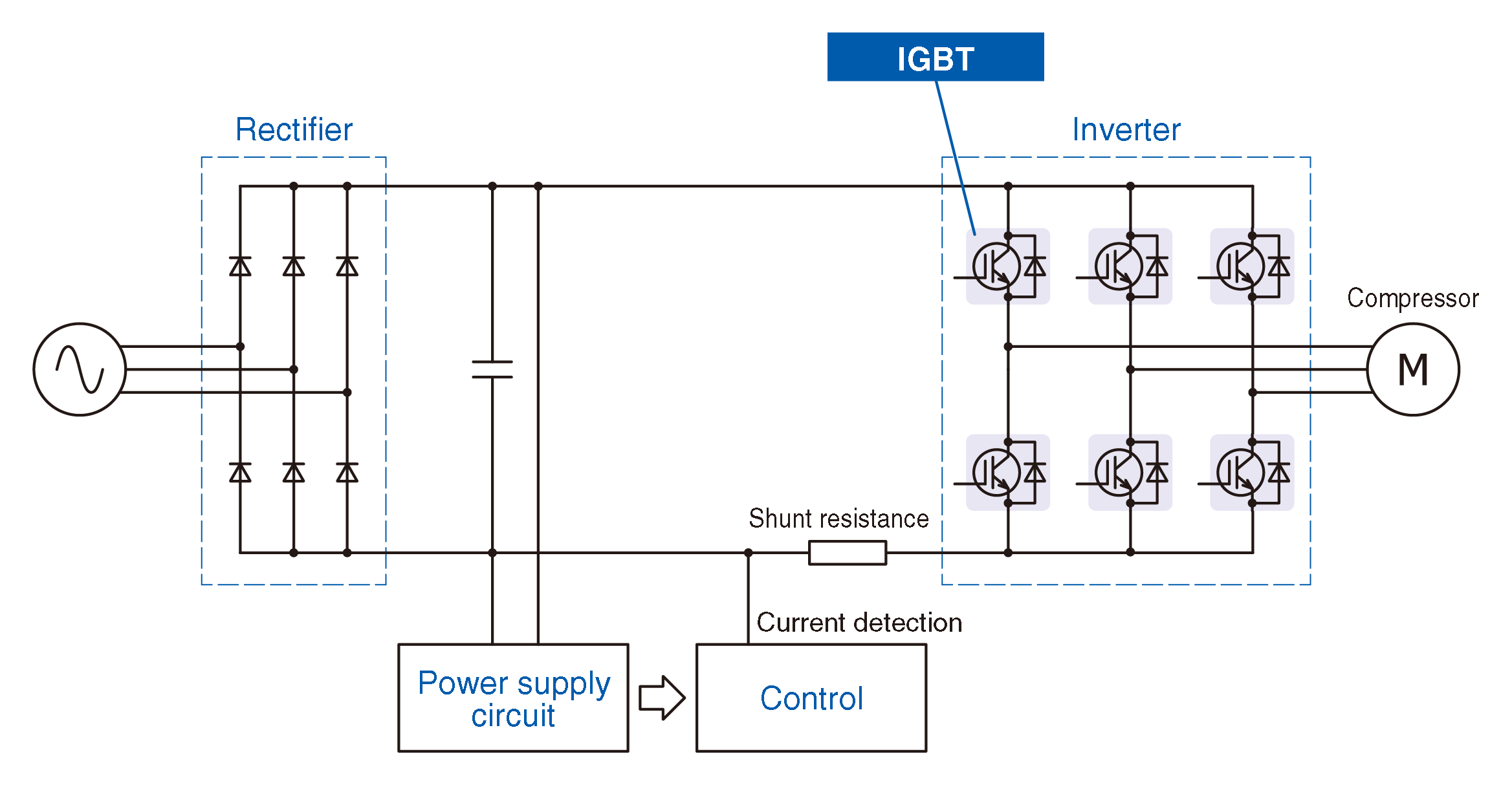

Circuit Configuration of Air Conditioner Outdoor Units
IGBT Modules for Air Conditioner Outdoor Units
Cooling
rating
capacity |
Device rating |
X Series |
V Series |
| HP |
IPM |
IGBT Modules |
IPM |
IGBT Modules |
| 1 |
600V, 650V
/ 10A |
|
7MBR10XKC065-50
7MBR10XKA065-50 |
|
7MBR10VKC060-50
7MBR10VKA060-50 |
| 2.5 |
600V, 650V
/ 15A |
6MBP15XSD060-50
6MBP15XSF060-50
6MBP15XSJ065-50
6MBP15XSK065-50 |
7MBR15XKC065-50
7MBR15XKA065-50 |
|
7MBR15VKC060-50
7MBR15VKA060-50 |
| 5 |
600V, 650V
/ 20A |
6MBP20XSD060-50
6MBP20XSF060-50
6MBP20XSJ065-50
6MBP20XSK065-50
6MBP20XRVF065-50 UD |
7MBR20XKC065-50
7MBR20XKA065-50 |
6MBP20VAA060-50 |
7MBR20VKC060-50
7MBR20VKA060-50 |
| 7.5 |
600V, 650V
/ 30A, 35A, 40A |
6MBP30XSD060-50
6MBP30XSF060-50
6MBP30XSJ065-50
6MBP30XSK065-50
6MBP30XRVF065-50 UD
6MBP35XSD060-50
6MBP35XSF060-50
6MBP35XSJ065-50
6MBP35XSK065-50
6MBP40XRVF065-50 UD |
7MBR30XKC065-50
7MBR30XKA065-50 |
6MBP30VAA060-50 |
7MBR30VKC060-50
7MBR30VKA060-50 |
| 15 |
600V, 650V
/ 50A |
6MBP50XTA065-50
6MBP50XTC065-50 |
7MBR50XKD065-50
7MBR50XKB065-50
7MBR50XPA065-50
7MBR50XMA065-50
7MBR50XWA065-50
7MBR50XYA065-50 |
6MBP50VAA060-50
6MBP50VBA060-50
6MBP50VFN060-50
7MBP50VFN060-50
6MBP50VDA060-50
7MBP50VDA060-50 |
7MBR50VKD060-50
7MBR50VKB060-50
7MBR50VA060-50
7MBR50VP060-50
7MBR50VY060-50
6MBI50VA-060-50
6MBI50VW-060-50 |
| 20 |
600V, 650V
/ 75A |
6MBP75XTA065-50
6MBP75XTC065-50 |
7MBR75XMA065-50
7MBR75XNA065-50
7MBR75XPA065-50
7MBR75XWA065-50
7MBR75XXA065-50
7MBR75XYA065-50 |
6MBP75VBA060-50
6MBP75VFN060-50
7MBP75VFN060-50
6MBP75VDA060-50
7MBP75VDA060-50 |
7MBR75VB060-50
7MBR75VP060-50
7MBR75VY060-50
6MBI75VA-060-50
6MBI75VW-060-50 |
| 30 |
600V, 650V
/ 100A |
|
7MBR100XNA065-50
7MBR100XPE065-50
7MBR100XRA065-50
7MBR100XXA065-50
7MBR100XYE065-50
7MBR100XZA065-50 |
6MBP100VFN060-50
7MBP100VFN060-50
6MBP100VDA060-50
7MBP100VDA060-50
6MBP100VDN060-50
7MBP100VDN060-50 |
7MBR100VP060-50
7MBR100VB060-50
7MBR100VR060-50
7MBR100VZ060-50
6MBI100VA-060-50
6MBI100VW-060-50 |
| 40 |
600V, 650V
/ 150A |
|
7MBR150XNA065-50
7MBR150XRA065-50
7MBR150XRE065-50
7MBR150XXA065-50
7MBR150XZA065-50 |
6MBP150VDA060-50
7MBP150VDA060-50
6MBP150VDN060-50
7MBP150VDN060-50 |
7MBR150VR060-50
7MBR150VZ060-50
6MBI150VB-060-50
6MBI150VX-060-50 |
| 60 |
600V
/ 200A |
|
|
6MBP200VDA060-50
7MBP200VDA060-50
6MBP200VDN060-50
7MBP200VDN060-50
6MBP200VEA060-50
7MBP200VEA060-50 |
|
