Solar

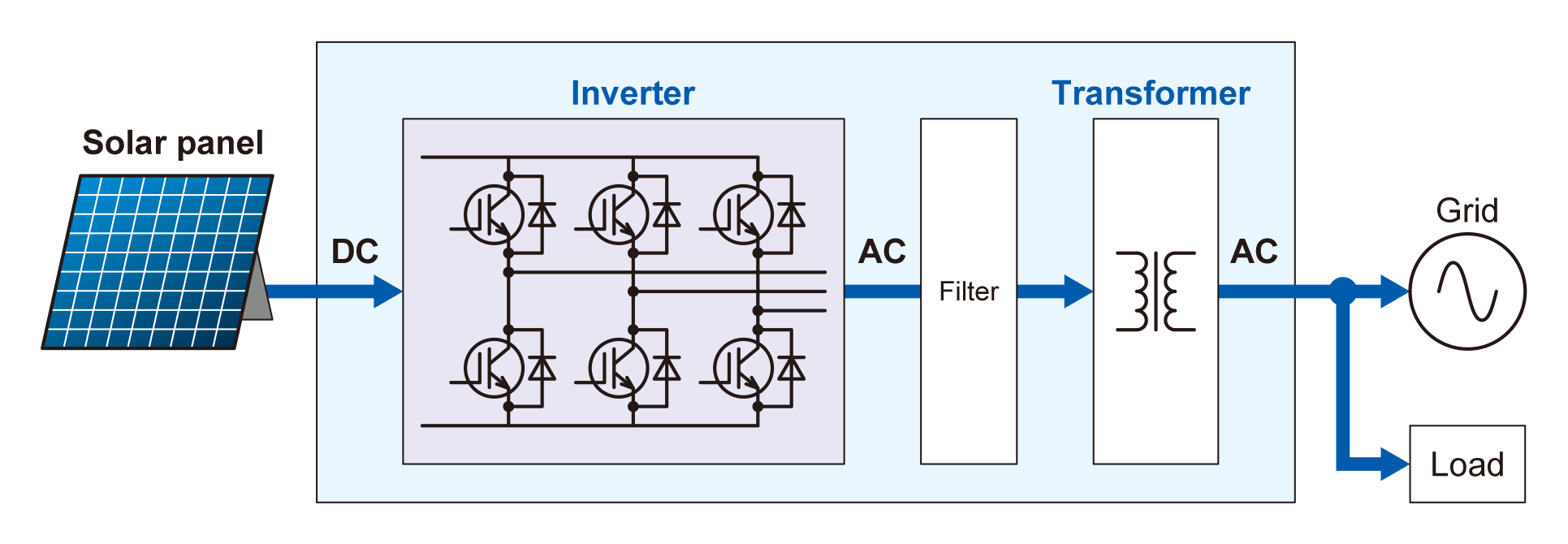

Power conditioners are necessary to convert solar-panel generated DC power into the AC power needed for residential consumption and for the recovery of the power to power company power systems.
Solar Inverters Configuration Example

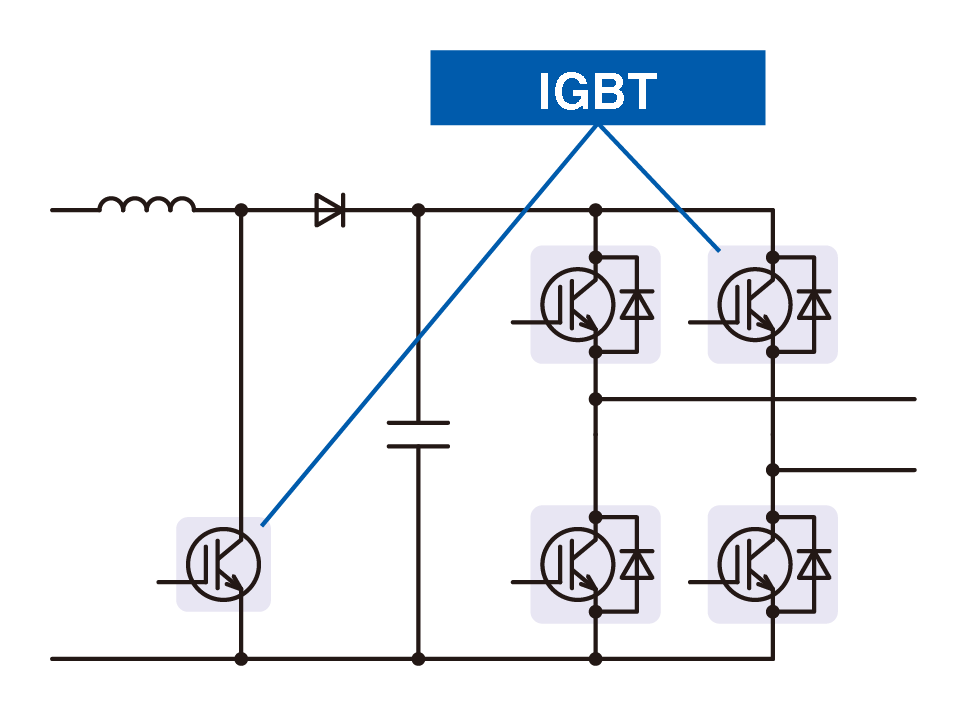

| Type | Single-phase inverter |

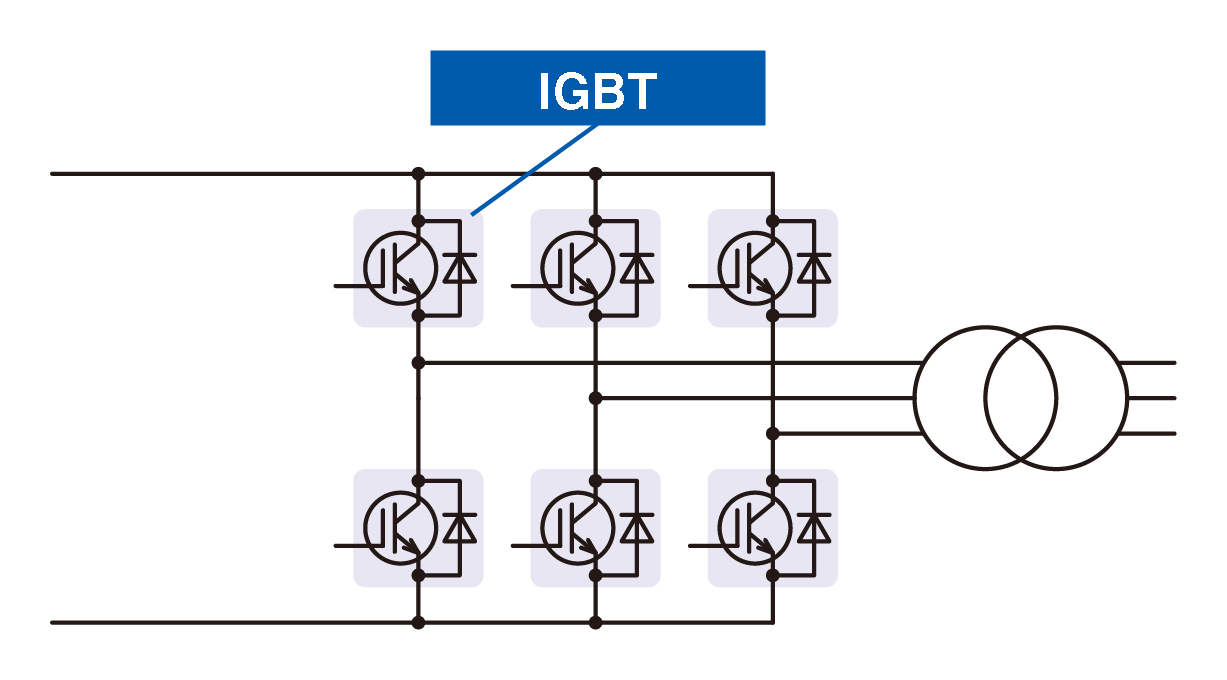

2-level inverter |

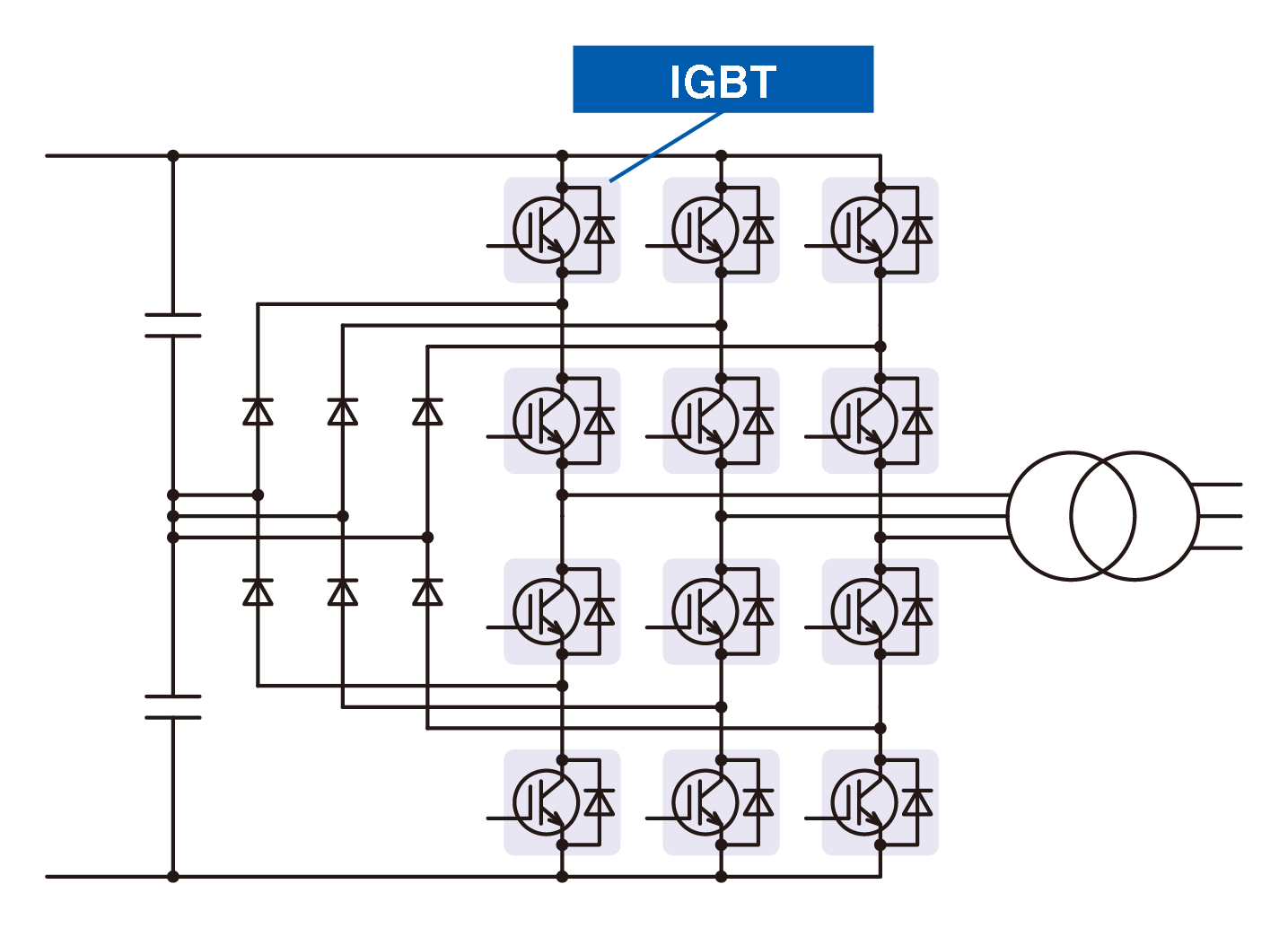

NPC 3-level inverter |

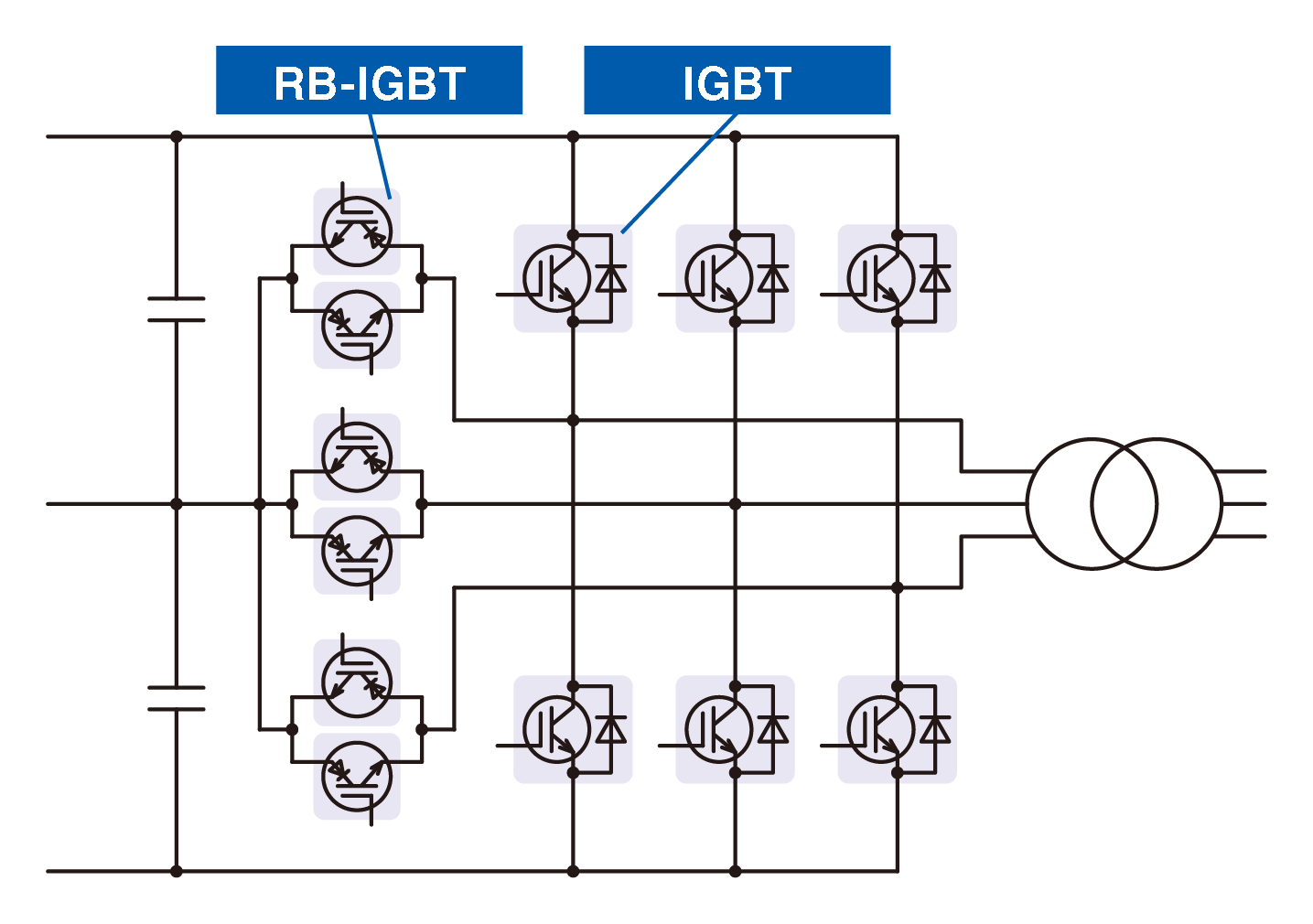

A-NPC 3-level with RB-IGBT |
|---|---|---|---|---|
| Circuit |  |
 |
 |
 |
| Device | IGBT:600V | IGBT:1200V IGBT:1700V, 2300V |
IGBT:600V | IGBT:1200V +600V(RB-IGBT) IGBT:1700V +1200V(RB-IGBT) |
| Output Voltage |
 |
 |
 |
 |
| Capacity | < 10kW | > 10kW | > 10kW | > 10kW |
Recommended Devices for Solar Inverters
A list of IGBT module models ideal for use with solar inverters will be displayed.
The product data sheets for each model type are presented.
