Wind Power Generation

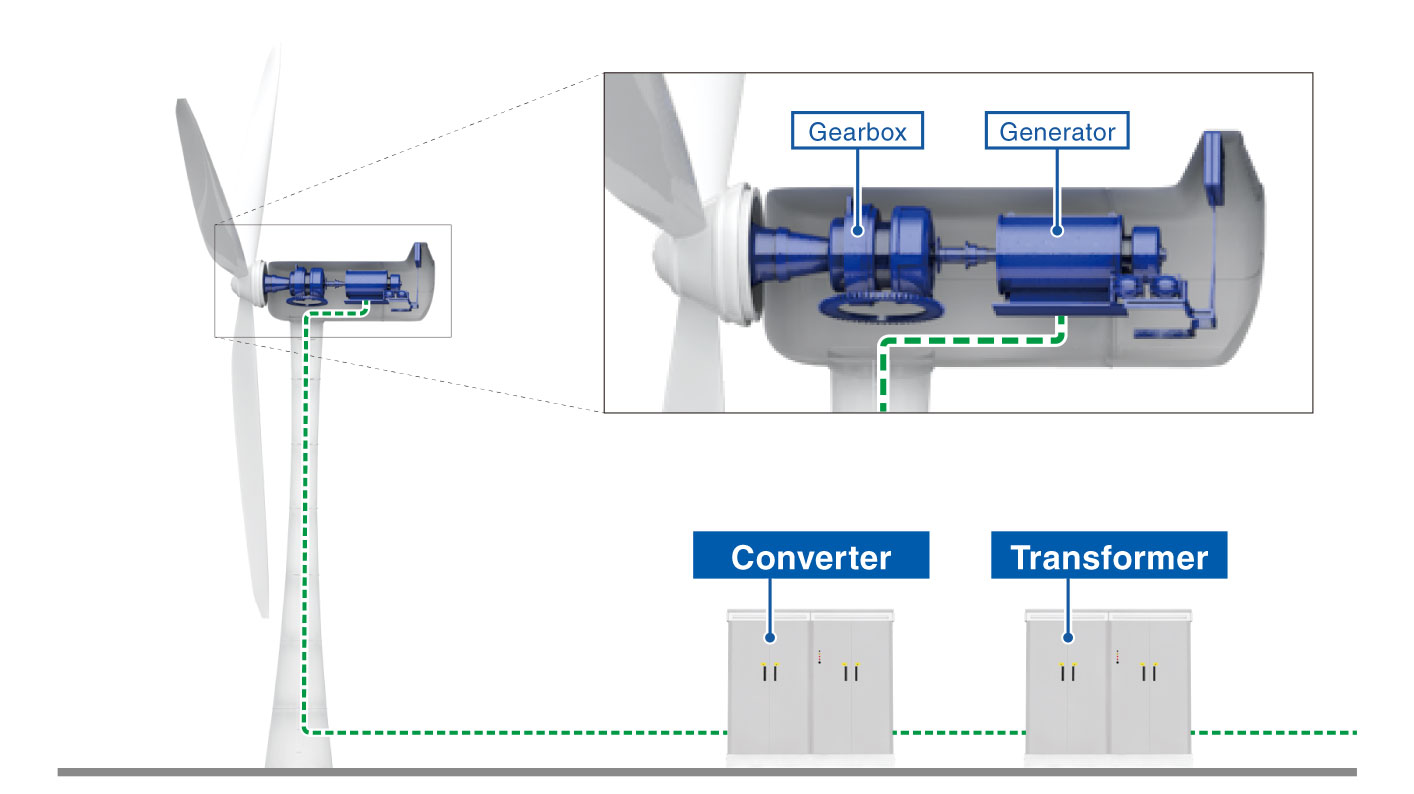

Wind turbine generators create power from natural wind. They are becoming more popular globally as a clean method of power generation that is environmentally friendly.
Wind turbines with increased blade lengths to raise the amount of power generated per turbine are becoming the mainstream type of power generator.
The output power of wind power generators is converted to DC power in an AC/DC converter, and then converted from DC power to commercial frequency AC power by an inverter.
Fuji Electric supplies IGBT modules that are suitable for conversion circuits that are required to have a large capacity.
Wind turbines with increased blade lengths to raise the amount of power generated per turbine are becoming the mainstream type of power generator.
The output power of wind power generators is converted to DC power in an AC/DC converter, and then converted from DC power to commercial frequency AC power by an inverter.
Fuji Electric supplies IGBT modules that are suitable for conversion circuits that are required to have a large capacity.

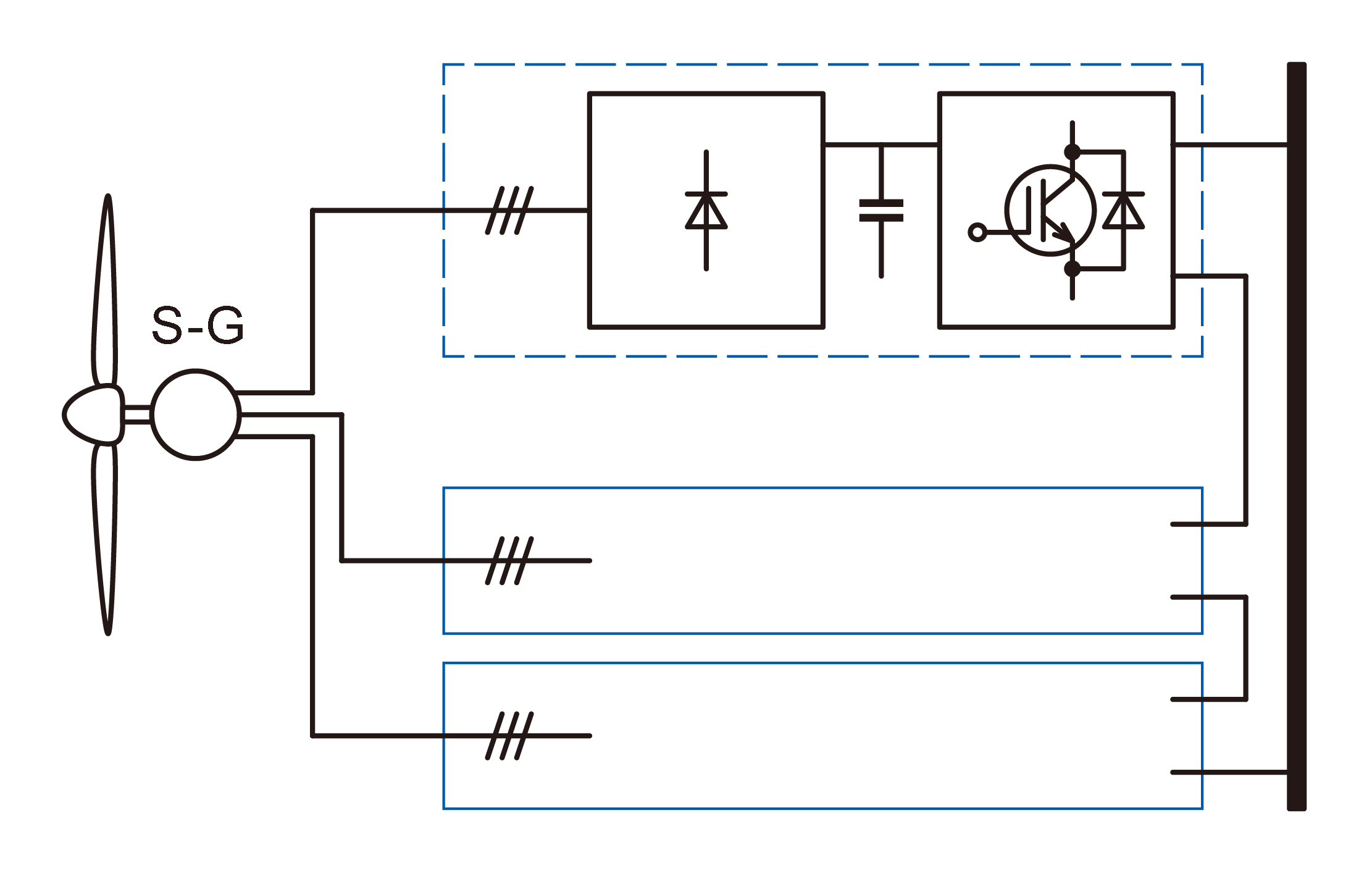

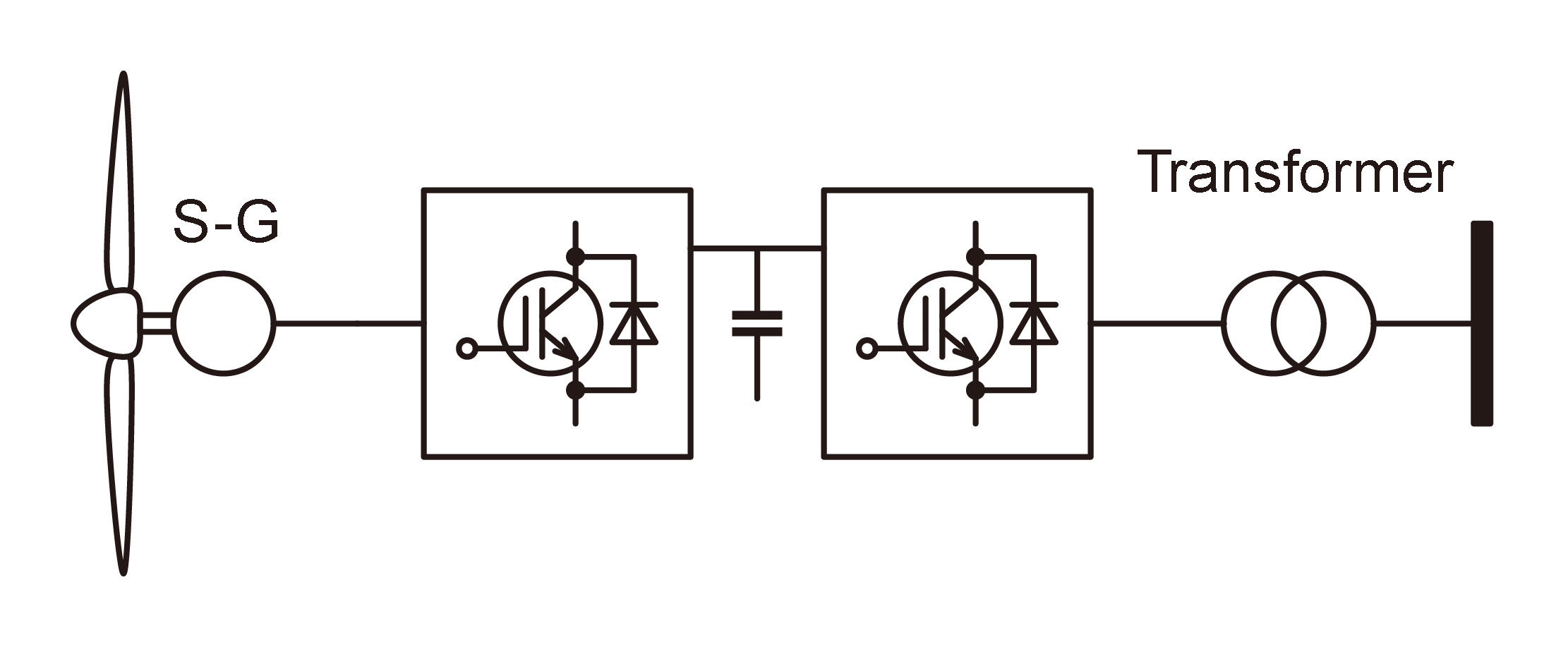

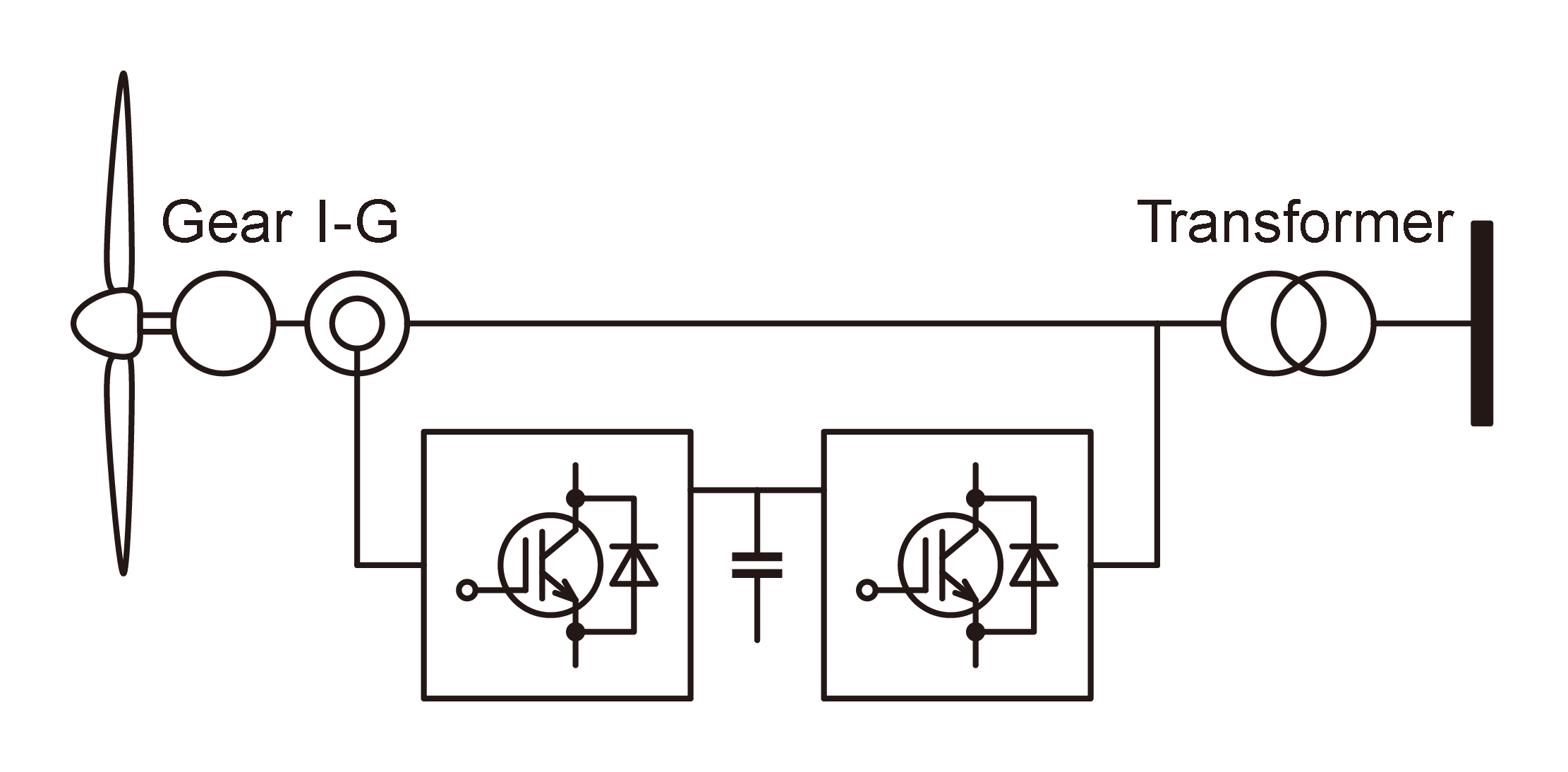

Wind Power Generation Configuration Example
| Topology | Double | Direct | Direct + Multi level |
|---|---|---|---|
| Configuration |  |
 |
 |
| Efficiency | 89% | 90% | 93% |
| Cost | 100% | 98~100% | 90~95% |
| Quality | Low | High | High |
| Gear box | Need | Not need | Not need |
| Step up Transformer | Need | Need | Not need |
| Generator | Induction | Synchronous | Synchronous +Multi winding |
| Converter capacity |
15~30% | 100% | 100% |
| IGBT | 1700V/450A~1000A | 1700V/1000A~3600A | 3300V/150A~400A |
Recommended Devices for Wind Power Generation
A list of IGBT module models ideal for use with wind power generation will be displayed.
The product data sheets for each model type are presented.
